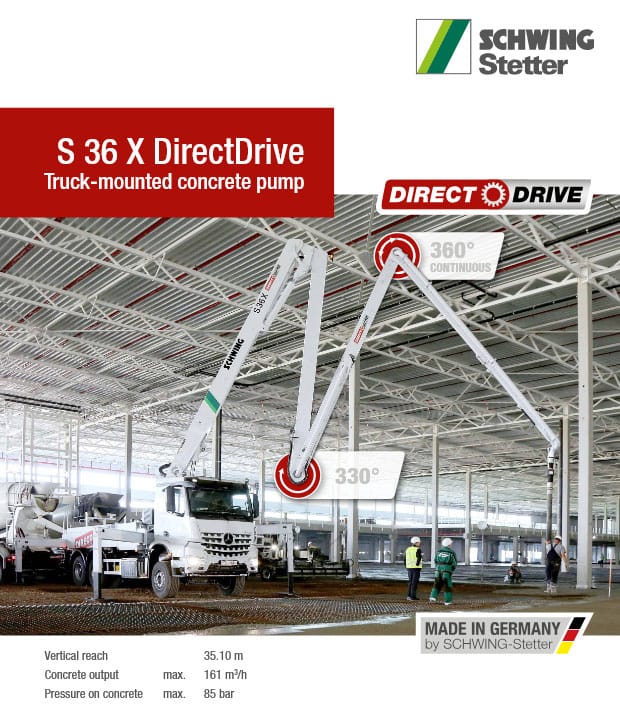

SCHWING’s DirectDrive revolutionises the operation and utilisation of truck-mounted concrete pumps. Direct-Drive’s cutting-edge technology combines the advantages of previously defined boom folding types into one machine, significantly increasing the possibilities for job-site utilisation. As a result, the S 36 X DirectDrive can be used in a wider variety of applications than any other truck-mounted concrete pump in its class. The innovative DirectDrive features the prominent advantages of SCHWING’s truck-mounted concrete pumps: high fuel efficiency, a powerful pump kit, low service costs, and excellent value retention. The S 36 X DirectDrive from SCHWING: a new drive, new possibilities.
The DirectDrive developed by SCHWING engineers is a completely new drive concept for the boom stages of a truck-mounted concrete pump. Instead of a hydraulic cylinder, a hydraulic rotary actuator is installed in the joint, allowing for boom movements that were unthinkable until now. This grants the third boom stage a remarkable opening angle of 330°, while the fourth boom stage can endlessly rotate through a full 360°. SCHWING’s DirectDrive components are manufactured in Austria and Germany.
| Performance | |||||
| Pump Kit | P2023- 110/75 | P2023- 110/75 | P2023- 110/75 | P2025- 120/80 | P2025- 120/80 |
| Drive (l/min) | 380 | 535 | 636 | 535 | 636 |
| Delivery Cylinders (mm) | 230 x 2,000 | 230 x 2,000 | 230 x 2,000 | 250 x 2,000 | 250 x 2,000 |
| Concrete Output Max. (m^3/h) | 98 | 136 | 161 | 136 | 161 |
| Pressure on Concrete Max. (Bar) | 85 | 85 | 85 | 85 | 85 |
| Stroke Rate Max. (1/min) | 20 | 27 | 32 | 23 | 27 |
| Concrete Valve | M-ROCK (Option: B-ROCK) | M-ROCK (Option: B-ROCK) | M-ROCK (Option: B-ROCK) | B-ROCK | B-ROCK |
| Hydraulic System | |
| Design | Open System |
| Hydraulic Tank (L) | 385 |
| Boom | 36 DirectDrive |
| Delivery Line | DN 125 |
| Length of End Hose (m) | 3.50 (Option: 1.00 + 2.50) |
| Vertical Reach (m) | 35.10 |
| Reach Depth (m) | 22.65 |
| Horizontal Reach (m) | 31.10 |
| Net Horizontal Reach (m) | 28.60* (from front bumper) |
| Number of Boom Sections | 4 |
| Height of Inflexion Points (m) | 3.99 / 12.39 / 19.95 / 27.45 |
| Slewing Range | 2 x 365° |
| Folding Height (m) | 8.32 |
| Support | |
| Outrigger Width, Front (m) | 6.21 |
| Outrigger Width, Rear (m) | 5.70 |
| Outrigger Load, Front (kN) | 190 |
| Outrigger Load, Rear (kN) | 150 |
| Chassis (Examples**) | Mercedes-Benz Arocs 2740 | MAN TGS 26.360 |
| Axles configuration | 6x4 | 6x4 |
| Wheelbase (mm) | 4,200 | 4,200 |
| Length (mm) | 11,200 | 11,235 |
| Miscellaneous | |
| Water Tank (L) | 420 |
All specifications are given for guidance only. For detailed information please contact 01606 556698
