The Versatile City Pump

The smaller the truck-mounted concrete pump, the greater the variety of uses – in the city centre in the morning, in a new suburban area in the afternoon and at a warehouse in the evening. With such diverse uses, the equipment and required accessories of such a city pump are also wide-ranging. At the same time it must be compact and flexible. Just as the S 20 from SCHWING is. Its extremely small space requirement for support, the high load capacity reserve and the high-performance pump battery ensure it can be used for a wide range of applications. The S 20 combines its flexibility with outstanding efficiency – be it when placing concrete with the boom or when using additional pipes or hoses, as is common in this category. The combination of unrivalled low maintenance costs, high reliability and excellent fuel efficiency mean more profit per cubic metre of pumped concrete.

Schwing S 20 Truck Mounted Concrete Pump

Performance Rod-Sided Piston-Sided
Pump Kit P 2020-120/80 P 2023-110/75
Drive (Vmin) 380 380
Delivery Cylinders (mm) 200 x 2,000 230 x 2,000
Concrete Output Max. (m^3/h) 111 98
Pressure on Concrete Max. (Bar) 60 85
Stroke Rate Max. (1/min) 29 20
Concrete Valve M-ROCK M-ROCK (Option: B-ROCK)
Hydraulic System
Design Open System
Hydraulic Tank (L) 400

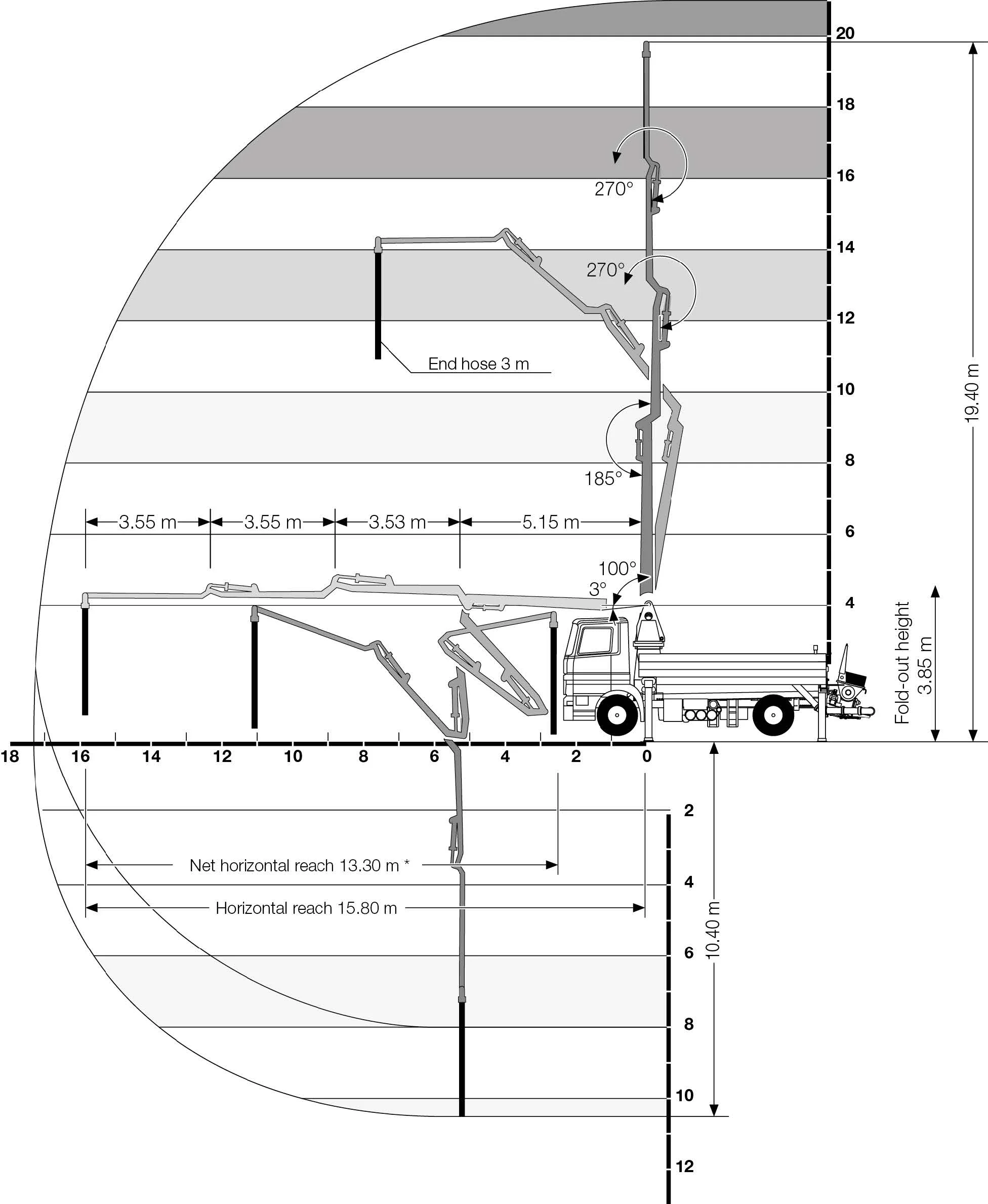

Boom 20 ZR
Delivery Line DN 125 (Option: DN 100)
Length of End Hose (m) 3.00
Vertical Reach (m) 19.40
Reach Depth (m) 10.40
Horizontal Reach (m) 15.80
Net Horizontal Reach (m) 13.30* (From Front Bumper)
Number of Boom Sections 4
Height of Inflexion Points (m) 3.70/8.80/12.30/15.90
Slewing Range 2 x 365°
Folding Height (m) 3.85
Support
Outrigger Width, Front (m) 2.20 - DN 100 / 3.85 with DN 125
Outrigger Width, Rear (m) 2.15
Outrigger Load, Front (kN) 110
Outrigger Load, Rear (kN) 70
Chassis (Examples**) Mercedes-Benz Arocs 1833 Mercedes-Benz Arocs 1830 MAN TGM 18.340
Axles Config 4x2 4x2 4x2
Wheelbase (mm) 4,500 4,200 4,125
Length (mm) 8,700 8,540 8,350
Miscellaneous
Water Tank (L) 400(Option: 2 x 400L)

All specifications are given for guidance only. For detailed information please contact 01606 556698
